Garland Roller

Short Description:

TX ROLLER conveyor represent the highest quality garland roller to assist our customers in helping make their plant/mine/facility to become more efficient, safe and productive.


Product Detail

Product Tags

TX ROLLER conveyor represent the highest quality garland roller to assist our customers in helping make their plant/mine/facility to become more efficient, safe and productive.

Advantage:
Value price;
Triple labyrinth seal;
Custom powder coated.
Sealed for life ball bearing;
Interchangeable roller assemblies;
Maintenance free sealed ball bearing;
Lifetime more than 20,000-25,000 hours;
JIS, CEMA, SABS, AS standard garland roller available;
Products offering of 450mm-2800mm belt width;
Extremely low rolling resistance & lowest operator cost;

Specification: Garland Roller

20171112204998099809

Structure Dimensions Roller Total Weight
Belt
Width
Length Width Clearance Height 102 Dia. 127 Dia. Dimensions Per Section
Unloaded Loaded Unloaded Loaded
A B C D E F E F G H 102 Roll 127 Roll
mm in mm mm mm mm mm mm mm mm mm mm kg kg
600 24 3048 1007 826 648 540 493 - - 224 700 86.4 -
650 26 3048 1057 876 648 533 486 - - 240 750 88.3 -
750 30 3048 1159 978 740 606 559 618 517 280 900 93.9 100
800 32 3048 1210 1030 740 599 552 611 564 295 950 95.8 102
900 36 3048 1311 1130 740 583 535 595 547 330 1050 99.5 106
2743 96.9 103
1000 40 3048 1416 1235 740 569 521 581 533 360 1175 108.5 116
2743 105.9 113
1050 42 2743 1464 1283 778 597 548 610 562 380 1210 110.1 117
2438 107.1 114
1200 48 2743 1616 1435 838 - - 646 598 432 1360 - 125
2438 122

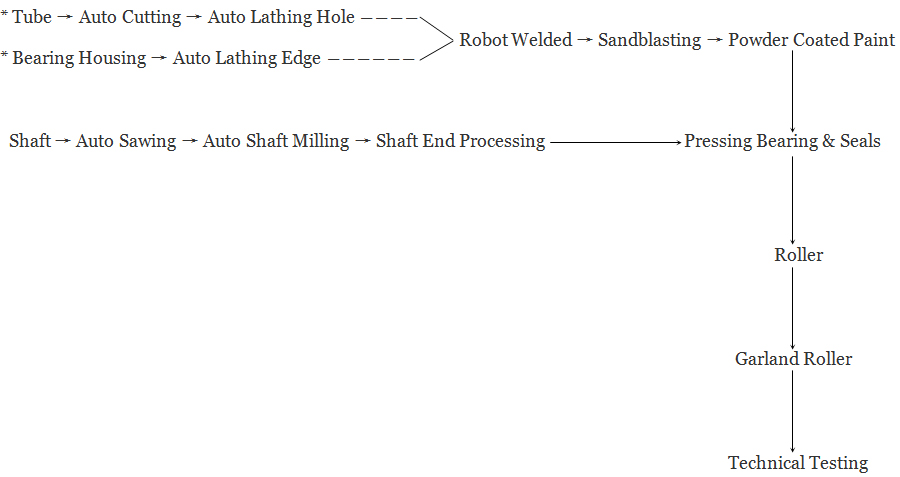

Garland Roller Processing Step:

Garland Roller

Our conveyor roller adopts the advanced production equipment and technology, with high automation, machining excellent.If you have any issues for the unit price and shipping cost, pls send us email, we shall provide you best price list.
